Sumitomo TYPE-71C+ Direct Core Fusion Splicer supplied with :
- FC-6RS clipper
- Battery pack
- Charger
- Transport case
Technical specifications :

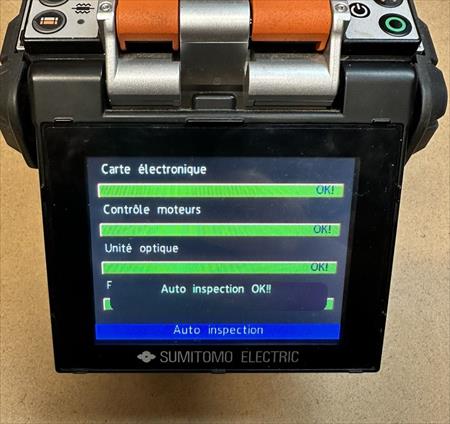

Simple interface and reinforced 5'' LCD touch screen
Soldering in 4 s in fast mode (SMF Quick)
Soldering in 6 s in auto mode (AUTO/SMF/G657)
Shrinking time of furnaces in 9 s in fast mode (QUICK)
Furnace shrinking time in 14 s in normal mode (SLIM)
Microscope magnification up to x760
Average solder loss of 0.01dB (single-mode G652/G657 or multimode)
Accepts angle cuts up to 6°.
Automatic recognition of all market fibers
Auto-calibration of arc power
Lightweight, compact format (2.2 kg with battery)
300 splice autonomy (BU-16 battery)
Integrated demonstration videos
Tool-free electrode replacement
Electrode life up to 6000 welds
Wi-Fi connectivity and updates via Smartphone app

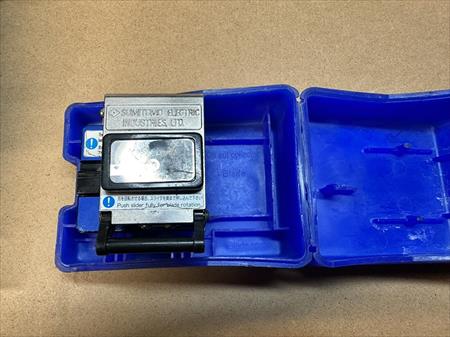

FC-6RS-C table-top clipper with manual carriage arming, external waste garbage can and 60,000-cut auto-rotating blade
