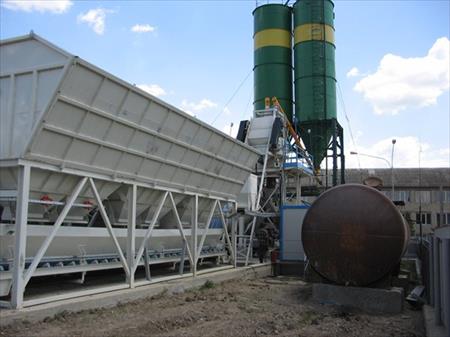

Main data:

• Turbine type concrete mixer 375 litersof output of fresh vibrated inserted concrete;

• Construction type: in line hoppers 8m3each;

• Coming construction for support;

• Height of overhang [exhaust] 2,5 m (ormore by request);

• Nominal production of capacity of 15m3/h of fresh vibrated inserted transporting concrete in continuous work (basedon 60 sec continuous cycles);

• 3 types of aggregates;

• Weight dosing of cement, aggregatesand liquid additives;

• Volumetric dosing of water;

Control by manual and automatic [bycomputer Siemens] with 100 different programs [different concrete mixtures];

BASIC TECHNICAL DATA OF PLANT

Model SUMAB T-10

Production capacity of wet concretebased on 30 sec mixing time 15 m3/h

Ambient oversea height Until 1.000 m

Ambient temperature for work -10 to 50°C

Working temperature of machines insideof plant 5 to 35 °C

Maximum allowed wind 120 km/h

Power supply 380-420 V, 50 Hz [ECstandard]

TECHNICAL DATA OF MIXER

Volume size of mixer’s drum 560 l

Output of fresh vibrated insertedconcrete 375 l

Nominal production capacity of concrete15 m3/h

Diameter of mixer’s drum 1550 mm

Maximum weight of concrete 800 kg

Engine power for mixer 11 kW

Engine power for hydraulics 1.5 kW

Output doors 1 pcs

Covering of bottom – thickness/quality10 mm / Hardox 300

Covering of walls – thickness/quality 10mm / Fe 520

Maximum size of aggregate 60 mm

Weight of mixer with skip 1 850 kg

Number of mixing hands 4 pcs

Number of scrapers 2pcs
