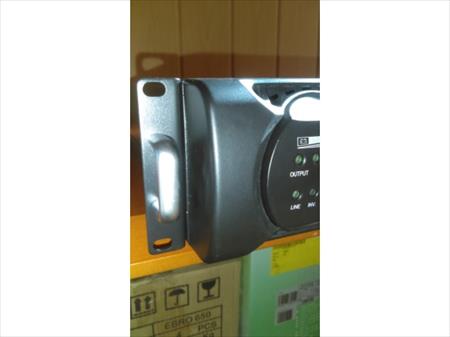

RHIN 2000VA/1400W Double battery pack
(new from overstock, end series, not used,
double battery pack)
Cost-effective On line Uninterruptible Power Supply (UPS)
series for IT and telecom applications
The Rhin is an on line UPS which continuously regulates
the power supply using On Line double conversion technology,
removing distortions to provide clean, safe and more
efficient energy. It is available in 2kVA* power output
and can be installed in either a tower or rack configuration
(rack rail kit required), providing a compact, versatile solution.
The Rhin UPS monitoring software is easy to install and
straight-forward to use. It clearly indicates input/output voltage,
battery load capacity and the current load supported
in real time. It also enables remote control monitoring
of the UPS via a network connection and offers seven
different alarms for added security.
* Please note that the 2kVA modules have no internal battery
and require at least 1 battery module, this UPS has
a double battery module for extension of the autonomy (double time).
The purpose of this device is to provide the load with
controlled power for each load en input supply condition.
The power provided by the UPS will be protected from
all variations in voltage and network frequency by
supplying electrical power to the load in a stable,
controlled and disturbance-free manner
Comes with 12 new batteries (12V/7,2 Ah), tested and ready to use, first hand.
EAN 8436047680080
info : http://www.zigor.com/products/power-quality-back-up/
Application
Workstations
Telecommunications
Data centres
Industrial market
Networking
Domestic use
Security
Aeronautics
Medicine
Defense
General technical features
True on-line UPS, double convertion technology, continuous 230V
Switching time 0 ms (instantaneous transition
from normal operation in emergency and vice versa)
Available in 2kVA with two battery modules
Each battery modules contains 6 batteries 12V/7,2Ah
instead of the original 12V/7Ah
2U rack / tower for each module (in total 6U)
Battery autonomy at full load:
with extended double battery module run time
in between 10 and 20 minutes (normal with only
one battery module run time in between 5 and 10 minutes)
6 IEC sockets
SNMP web management
Advantage of the product
ON-LINE technology
Microprocessor control
Power: 2 kVA
6 IEC sockets
Output wave form: pure Sinewave (Pulse Width Modulation control)
Visual alarms (leds) & audible in the case
of mains failure, battery fault, overload
PFC: Power factor corrector 0,95
Reduced harmonic distortion
Wide input voltage range
Protected against overloads en short circuits
Leds for battery load status, inverter, mains,
back-up mode, battery fault
RS232 communication port & monitoring software
5 to 10 min autonomy at full load
(depending on the load)
Automatic by-pass
SNMP Adapter optional/RS232 Ethernet converter
Rack Convertible (19 inch 2U)
With the 2U horse the units can be placed in
a stand alone tower configuration
Control panel can be turned over 90 degrees
in case of tower configuration
Packing list ( 13 kg + 2 x 21 kg)
UPS mainframe
First battery module ( 6 x 12V/7,2Ah)
Extra battery module ( 6 x 12V/7,2Ah)
Operation manual
CD UPSILON software
2x IEC output cord
1 male IEC input cord
Serial RS 232 cable
2U horse /module (tower configuration)
