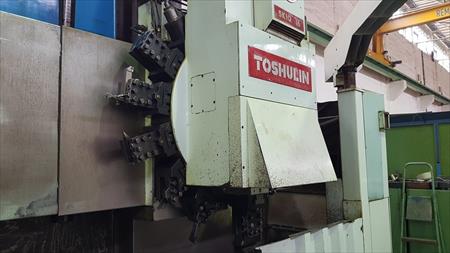

Producer ..... TOS Hulín
Year manufacture/Year overhaul ..... 1994
Control system Siemens ..... Sinumerik 820
Max. diameter of workpiece ..... 1800 mm

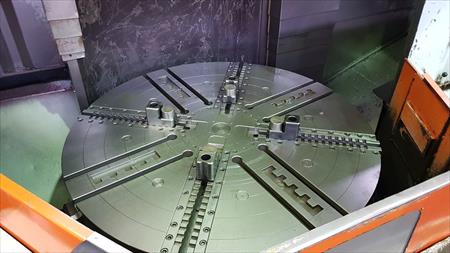

Clamping diameter of rotary table ..... 1600 mm
Max. load of table ..... 12000 kg
Max. workpiece height ..... 1500 mm
Ram travel (Z) ..... mm
Ram size ..... mm
Driven Tools
Tool magazine
Number of positions in magazine ..... 15
Axis C ..... °
Machine weight ..... 29 000 kg
Machine dimensions l x w x h ..... 3400x4300x6140 mm
